Seperable Connector Terminations
Separable connector terminations provide safe, reliable and flexible connections for medium voltage power distribution systems. Designed for easy installation, testing and maintenance, they support efficient network performance across a wide range of applications. Contact the IEWC UK team for further assistance today.

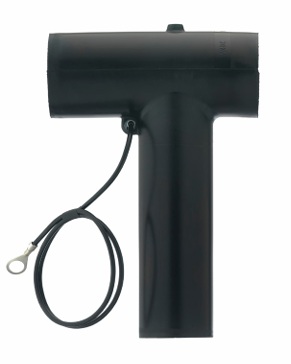

Type C Bushing Seperable Connectors – K480TB Range
The K480TB/G is intended for polymeric insulated medium voltage cables with extruded easy-strip conductive screen or bonded extruded conductive screen. It provides a separable, screened connection for medium voltage installations and is part of the EUROMOLD compact tee connector range.
Technical Characteristics:
- EPDM construction with a conductive outer jacket for a safe-to-touch screened design
- Type C1+C2 interface
- Compatible with 800TR / 800TR-A test rods
- Basic insulating plug with voltage detection point, standard from 24 kV
- Tested for AC withstand and partial discharge before leaving the factory
- Technical data table lists 12/20 kV, 630 A / 1250 A, conductor cross-section 35 to 300 mm² for K480TB/G
Specifications:
- Tested to CENELEC HD 629.1
- Interface described according to CENELEC EN 50180 and 50181
- ATEX version available on request
Type C Bushing Piggy Back Coupling Connectors – K800PB RangeÂ
The K800PB/G is designed for dual cable arrangements and is intended to be used with 480TB/G, 484TB/G or 489TB/G separable tee connectors. The arrangement can be extended with multiple coupling connectors, making it suitable for flexible network layouts.
Technical Characteristics:
- Conductive EPDM jacket for a safe-to-touch screened design
- Interface designed to fit 480TB/G, 484TB/G or 489TB/G tee connectors
- Compatible with 800TR / 800TR-A test rods
- Basic insulating plug with voltage detection point, standard from 30 kV
- Tested for AC withstand and partial discharge prior to leaving the factory
- Technical data table lists 12/20 kV, 630 A / 1250 A, conductor cross-section 35 to 300 mm² for K800PB/G
Specifications:
- Tested to CENELEC HD 629.1
- Meets the requirements of CENELEC HD 629.1
- ATEX version available on requestÂ

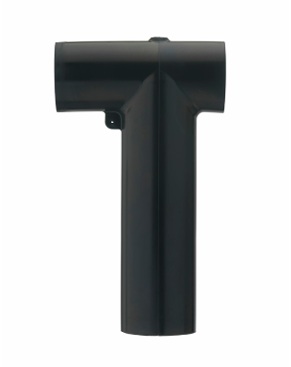

Type C Bushing Seperable Connectors – Compat Tee – K484TB RangeÂ
The K484TB/G is intended for installation on polymeric insulated medium voltage cables with extruded easy-strip conductive screen or bonded extruded conductive screen. It forms part of the EUROMOLD compact tee connector range for multiple voltage levels.
Technical Characteristics:
- Thick conductive EPDM jacket for a safe-to-touch screened connector
- Type C interface
- Compatible with 800TR / 800TR-A test rods
- Bolted or crimp conductor contact
- Screen break design enables cable outer sheath testing without removing or dismantling the connector
- Technical data table lists 12/20 kV, 630 A / 1250 A, conductor cross-section 35 to 630 mm² for K484TB/G
Specifications:
- Tested to CENELEC HD 629.1
- Interface described according to CENELEC EN 50180 and 50181
- ATEX version available on request
Type C Bushing  Seperable Connectors – Compact Tee – M480TB RangeÂ
The M480TB/G is designed for polymeric insulated medium voltage cables with extruded easy-strip conductive screen or bonded extruded conductive screen. It provides a separable, screened connection point suited to medium voltage distribution networks.
Technical Characteristics:
- Conductive EPDM jacket for a fully screened, safe-to-touch design
- Type C1+C2 interface
- Compatible with 800TR / 800TR-A test rods
- Basic insulating plug with voltage detection point, standard from 36 kV
- Each connector is tested for AC withstand and partial discharge
- Technical data table lists 18/30 kV, 630 A / 1250 A, conductor cross-section 50 to 300 mm² for M480TB/GÂ
Specifications:
- Tested to CENELEC HD 629.1
- Interface described according to CENELEC EN 50180 and 50181
- ATEX version available on request
Type C Bushing Piggy back Coupling Connectors – M800PB RangeÂ
The M800PB/G is intended for dual cable arrangements and is designed for use with 480TB/G, 484TB/G or 489TB/G separable tee connectors. Multiple coupling connectors can be used to extend the cable arrangement where required.
Technical Characteristics:
- Thick conductive EPDM jacket for a screened, safe-to-touch design
- Interface designed for 480TB/G, 484TB/G or 489TB/G
- Compatible with 800TR / 800TR-A test rods
- Basic insulating plug with voltage detection point, standard from 30 kV
- Factory tested for AC withstand and partial discharge
- Technical data table lists 18/30 kV, 630 A / 1250 A, conductor cross-section 50 to 300 mm² for M800PB/G
Specifications:
- Tested to CENELEC HD 629.1
- Meets the requirements of CENELEC HD 629.1
- ATEX version available on requestÂ
Type C Bushing Seperable Connectors – Compact Tee – M484TB RangeÂ
The M484TB/G is designed for polymeric insulated medium voltage cables with extruded easy-strip conductive screen or bonded extruded conductive screen. It provides a separable, screened connection for medium voltage installations across multiple voltage levels.
Technical Characteristics:
- Conductive EPDM outer jacket for a fully screened, touch-safe design
- Type C interface
- Compatible with 800TR / 800TR-A test rods
- Bolted or crimp conductor contact
- Screen break design supports outer sheath testing without dismantling
- Technical data table lists 18/30 kV, 630 A / 1250 A, conductor cross-section 50 to 630 mm² for M484TB/G
Specifications:
- Tested to CENELEC HD 629.1
- Interface described according to CENELEC EN 50180 and 50181
- ATEX version available on request
